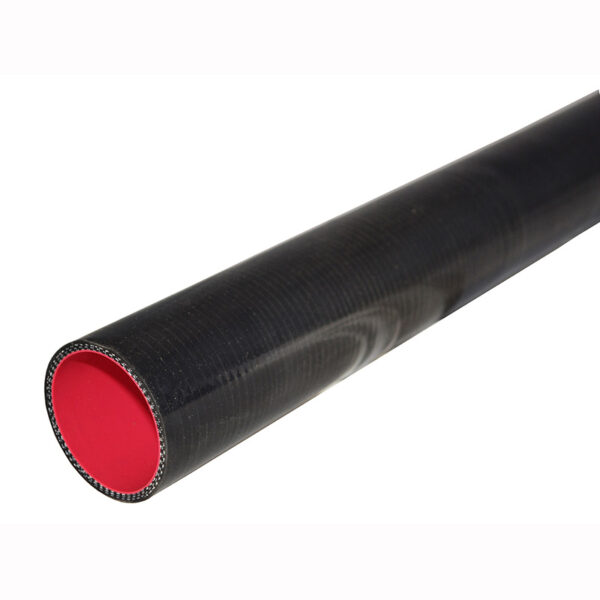

Straight Performance Oil Resistant Fluorosilicone Turbo Oil Drain Hose 3 Ply SFL Series Shiny Black
Straight Performance Oil Resistant Fluorosilicone Turbo Oil Drain Hose 3 Ply SFL Series Shiny Black
This Straight length of Performance SFL Series Hose is lined with Fluorosilicone. It comes in a standard black jacket, and pink liner. Reinforcement is 3 Ply of Polyester (for ID between 8mm to 70mm.) and 4 Ply of Polyester (for ID between 76mm to 102mm.) This hose has been designed to meet the EPA 2007 and EURO IV & V requirements for reduced emissions. The fluorosilicone lining eliminates closed crankcase vapors from permeating through the sidewall of the intercooler connection bellows at 260°C. This may be used as an oil resistant hose (Not suitable for steam). Temperature Range is -40 degrees C to 260 degrees C.
Straight Performance Oil Resistant Fluorosilicone Turbo Hose 3 Ply SFL Series Shiny Black |
|||||
| Part Number | ID (mm) | ID (inch) | Ply Rating | Burst Press (psi) | Std Length |
| SFL16 | 16mm | 5/8 | 3Ply | 125 | 1 meter |
| SFL19 | 19mm | 3/4 | 3Ply | 120 | 1 meter |
| SFL22 | 22mm | 7/8 | 3Ply | 115 | 1 meter |
| SFL25 | 25mm | 1 | 3Ply | 110 | 1 meter |
| SFL32 | 32mm | 1 1/4 | 3Ply | 107 | 1 meter |
| SFL45 | 45mm | 1 3/4 | 3Ply | 105 | 1 meter |
| SFL51 | 51mm | 2 | 3Ply | 102 | 1 meter |
| SFL57 | 57mm | 2 1/4 | 3Ply | 102 | 1 meter |
| SFL63 | 63mm | 2 1/2 | 3Ply | 100 | 1 meter |
| SFL76 | 76mm | 3 | 3Ply | 100 | 1 meter |
