Stainless Steel Milk Bends

Available in Stainless Steel (T304) Mirror Finish

As used in Dairy Industry

Description

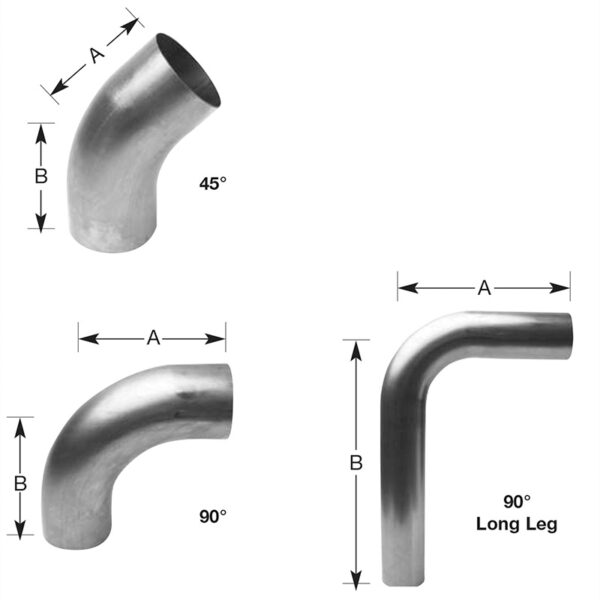

Stainless Steel Milk Bends

Product Code OD CLR WALL GAUGE STRAIGHT LENGTH LENGTH (A) LENGTH (B)
45 Degree
SSMB.025X45 25.4mm 1″ 51mm 1.2mm 125mm 151mm 151mm
SSMB.032X45 31.75mm 1 1/4″ 57mm 1.2mm 125mm 155mm 155mm
SSMB.038X45 38.1mm 1 1/2″ 76mm 1.2mm 125mm 164mm 164mm
SSMB.051X45 50.8mm 2″ 95mm 1.2mm 125mm 175mm 175mm
SSMB.063X45 63.5mm 2 1/2″ 95mm 1.2mm 125mm 178mm 178mm
SSMB.076X45 76.2mm 3″ 114mm 1.6mm 125mm 189mm 189mm
SSMB.102X45 101.6mm 4″ 152mm 1.6mm 150mm 235mm 235mm
90 Degree
SSMB.025X90 25.4mm 1″ 51mm 1.2mm 125mm 189mm 189mm
SSMB.032X90 31.75mm 1 1/4″ 57mm 1.2mm 125mm 198mm 198mm
SSMB.038X90 38.1mm 1 1/2″ 76mm 1.2mm 125mm 220mm 220mm
SSMB.051X90 50.8mm 2″ 95mm 1.2mm 125mm 245mm 245mm
SSMB.063X90 63.5mm 2 1/2″ 95mm 1.2mm 125mm 252mm 252mm
SSMB.076X90 76.2mm 3″ 114mm 1.6mm 125mm 277mm 277mm
SSMB.102X90 101.6mm 4″ 152mm 1.6mm 150mm 353mm 353mm
Long Bend
SSMB.025X90LT 25.4mm 1″ 51mm 1.2mm 100mm 165mm 514mm
SSMB.032X90LT 31.75mm 1 1/4″ 57mm 1.2mm 100mm 173mm 530mm
SSMB.038X90LT 38.1mm 1 1/2″ 76mm 1.2mm 100mm 195mm 552mm
SSMB.051X90LT 50.8mm 2″ 95mm 1.2mm 100mm 221mm 578mm
SSMB.063X90LT 63.5mm 2 1/2″ 95mm 1.2mm 100mm 227mm 584mm
SSMB.076X90LT 76.2mm 3″ 114mm 1.6mm 100mm 252mm 609mm
SSMB.102X90LT 101.6mm 4″ 152mm 1.6mm 100mm 303mm 660mm
