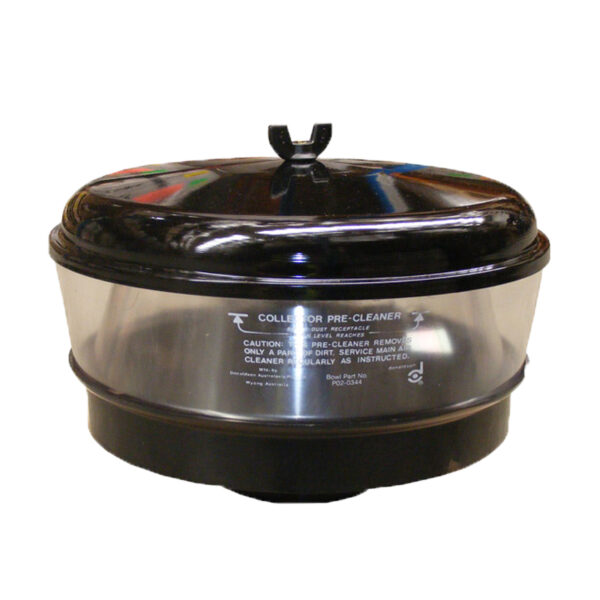

Precleaners – Full View

Features:

  • Recommended mounting: on top of the engine intake stack.
  • Centrifugal force in a bowl separates up to 75% of incoming dust before it enters the engine air intake system.
  • Low maintenance.
  • Durable, lightweight non-corrosive construction.
  • Full-view plastic bowl lets operate easily see when service is needed.
  • One-bolt cover retention for easy service. When dirt reaches the level of the arrow, remove top nut, and plastic body, then empty -> no tools required.
  • Mounting required.

Description

Precleaners – Full View
Entire
F.V. Pre-Cleaner		 Replacement Inlet  (ID/OD) Weight Max. Airflow

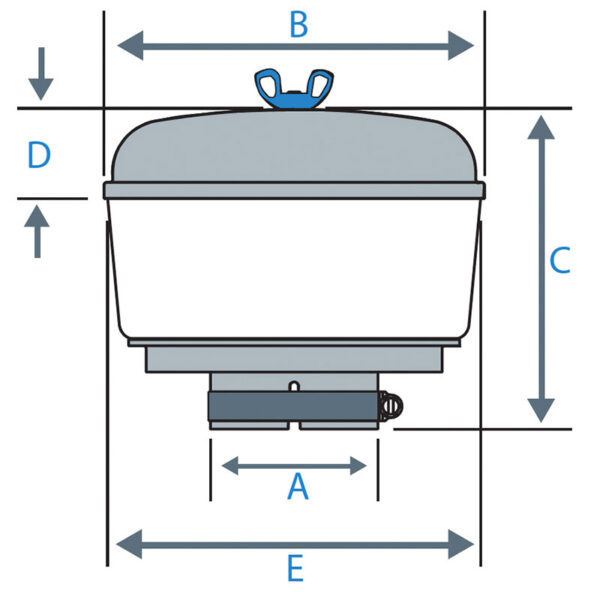

A  B  C  D  E
Cover Bowl in mm in mm in mm in mm in mm lbs kg CFM
H002042 P020116 P020115 1.75 44 5.59 142 4.75 121 1.72 44 5.50 140 0.8 0.37 80
H002040 P020116 P020115 2.00 51 5.59 142 4.75 121 1.72 44 5.50 140 0.9 0.41 90
H0018231 P020648 P020227 2.00 51 7.34 186 6.19 157 1.72 44 7.25 184 1.4 0.64 110
H001250 P020648 P020227 2.25 57 7.34 186 6.19 157 1.72 44 7.25 184 1.5 0.68 130
H001251 P020648 P020227 2.50 64 7.34 186 6.19 157 1.72 44 7.25 184 1.5 0.68 150
H001249 P020648 P020227 3.00 76 7.34 186 6.19 157 1.72 44 7.25 184 1.6 0.73 170
H0008201 P016548 P016330 3.00 76 10.63 270 7.66 195 1.84 47 10.50 267 3.4 1.54 320
H000821 P016548 P016330 3.75 95 10.63 270 7.66 195 1.84 47 10.50 267 3.4 1.54 330
H000858 P016548 P016330 4.00 102 10.63 270 7.66 195 1.84 47 10.50 267 3.4 1.54 340
H0020451 P020345 P020344 4.00 103 12.06 306 8.19 208 2.00 51 11.94 303 4.5 2.04 660
H000823 P016548 P016330 4.50 114 10.63 270 7.66 195 1.84 47 10.50 267 3.4 1.54 340
H0020441 P020345 P020344 4.50 114 12.06 306 8.19 208 2.00 51 11.94 303 4.5 2.04 700
H002043 P020345 P020344 5.00 127 12.06 306 7.69 195 2.00 51 11.94 303 4.5 2.04 740
H002223 P104691 P158324 6.00 152 16.25 413 10.00 254 2.81 71 15.94 405 9.2 4.17 1300
H002224 P104691 P158324 7.00 178 16.25 413 10.00 254 2.81 71 15.94 405 9.2 4.17 1500
