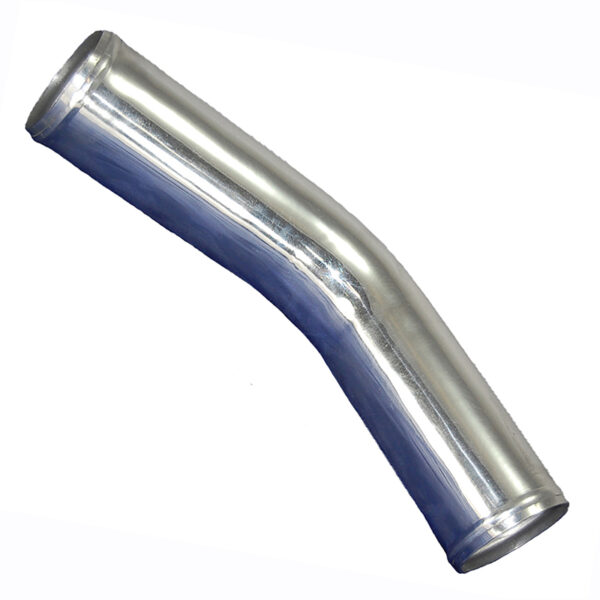

Joiner 45 Degree Polished Aluminium Elbow A Series

These 45 Degree Aluminium Elbows are an excellent lightweight option for your hose joining and bespoke induction applications. These mirror polished elbows feature swaged ends (1.5mm raised beaded lip), essential for secure hose installation on high boost applications.

Features: High Performance ratings with excellent reliability in all conditions. Easy to replace, cut and adapt to your piping needs. They are corrosion resistant and high temperature resistant, up to 250°C


Joiner 45 Degree Polished Aluminium Elbow A45 Series

Part Number ID (mm) ID (inch) Ply Rating Standard Leg Length
A45-150 38mm 1 1/2 Aluminium 150mm
A45-200 51mm 2 Aluminium 140mm
A45-225 57mm 2 1/4 Aluminium 120mm
A45-250 63mm 2 1/2 Aluminium 160mm
A45-275 70mm 2 3/4 Aluminium 130mm
A45-300 76mm 3 Aluminium 140mm
A45-400 102mm 4 Aluminium 250mm
