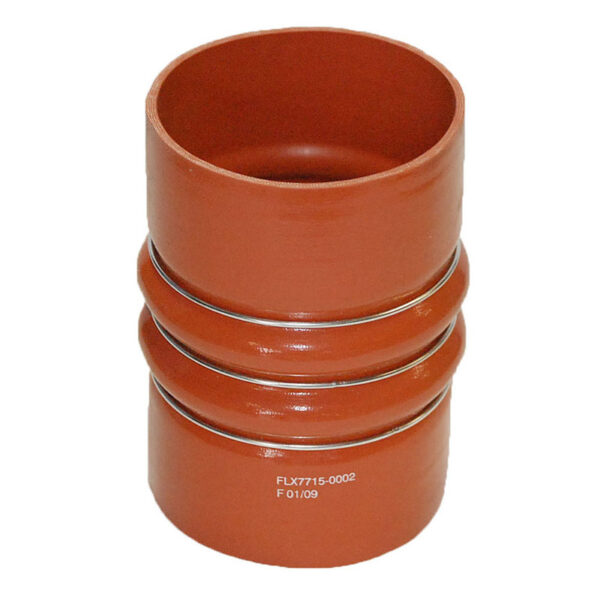

Intercooler Bellows FLX Series Iron Oxide Red / Black
Flexfab has designed and engineered these intercooler bellows for the hot side of the turbocharger. These provide a superior connection between engine mounted charge air system components which are ideal for handling slight misalignments and isolating vibration between hose ends. Sizes range from 2.5″ To 5″ ID in Various lengths. They are fabricated from 4 ply Nomex, and stainless steel rings. Temperature range is -65 degrees C to +260 degrees C
Description
Intercooler Bellows FLX Series Iron Oxide Red / Black |
|||||||
| Part Number | ID (mm) | ID (inch) | Ply Rating | Max Pressure (psi) | No. Of Rings | Colour | Standard Length |
| RPW006 | 63mm | 2 1/2 | 4 Ply | 60 | 3 | Iron Oxide Red/Orange | 127mm |
| FLX7967D | 63mm | 2 1/2 | 4 ply | 60 | 5 | Black | 216mm |
| FLX7731-0001 | 76mm | 3 | 4 Ply | 60 | 3 | Iron Oxide Red/Orange | 152mm |
| FLX7880 | 89mm x 102mm | 3 1/2 x 4 | 4 Ply | 50 | 2 | Iron Oxide Red/Orange | 152mm |
| FLX7732-0001 | 89mm | 3 1/2 | 4 Ply | 55 | 3 | Iron Oxide Red/Orange | 152mm |
| FLX7723 | 102mm | 4 | 4 Ply | 50 | 2 | Iron Oxide Red/Orange | 152mm |
| FLX7715-0002 | 102mm | 4 | 4 Ply | 50 | 3 | Iron Oxide Red/Orange | 152mm |
| FLX7727-0001 | 102mm | 4 | 4 Ply | 50 | 3 | Iron Oxide Red/Orange | 203mm |
| FLX7715XL | 102mm | 4 | 5 ply | 50 | 3 | Black | 178mm |
| RPWBELL4X8 | 102mm | 4 | 4 ply | 50 | 3 | Iron Oxide Red/Orange | 203mm |
| FLX7735 | 102mm X 114mm | 4 X 4 1/2 | 4 Ply | 45 | 3 | Iron Oxide Red/Orange | 152mm |
| FLX7735XL | 102mm x 114mm | 4 x 4 1/2 | 5 ply | 45 | 3 | Black | 203mm |
| RPW020 | 102mm x 114mm | 4 x 4 1/2 | 4 ply | 45 | 3 | Iron Oxide Red/Orange | 178mm |
| FLX7742-0001 | 114mm | 4 1/2 | 4 Ply | 45 | 3 | Iron Oxide Red/Orange | 152mm |
| FLX7797 | 127mm | 5 | 4 Ply | 35 | 3 | Iron Oxide Red/Orange | 152mm |
| RPW224 | 76mm x 63mm | 3 X 2 1/2 | 4 Ply | 45 | 6 | Iron Oxide Red/Orange | 285mm |
| RPW231 | 76mm x 80mm | 3 X 3 1/8 | 4 Ply | 45 | 7 | Iron Oxide Red/Orange | 265mm |
| FLX7796 (COLD INTAKE SIDE ONLY) | 102mm | 4 | 4 Ply | 50 | 2 | Blue (COLD INTAKE SIDE ONLY) | 152mm |
| RPW1600366 (WITH SPECIAL METAL CUFFS) | 114mm | 4 1/2 | 4 ply | 45 | 6 | Iron Oxide Red/Orange (WITH SPECIAL METAL CUFFS) | 170mm |
