Inlet Hoods STYLE B
Inlet Hoods STYLE B
  1. Inlet Hoods STYLE B
  2. Inlet Hoods STYLE B

Inlet Hoods STYLE B

Inlet Hoods STYLE B

Protects engine air intake from rain, snow, birds and other large contaminants

  • Mounts on stack or directly to air cleaner for
    on-road and off-road equipment
  • Four styles in a wide variety of sizes
  • Installs easily with one clamp. Clamp
    included with hood on styles B, C and D

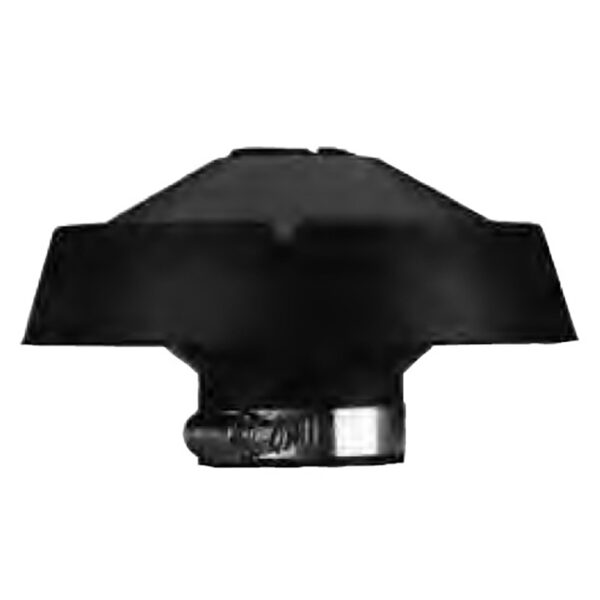

Inlet Hood Style B
Part Number Fits O.D. (A) Hood Dia.(B) Height (C) Add to Stack Mat’l Weight
inch mm inch mm inch mm inch mm lbs kgs
H002068 1.75 44 6.00 152 3.37 86 2.05 52 Plastic 0.2 0.09
H001377 2.00 51 6.00 152 3.31 84 2.50 64 Plastic 0.2 0.09
H008208 2.50 63 6.00 152 3.40 86 2.40 61 Plastic 0.3 0.14
H001378 2.50 63 6.00 152 3.31 84 2.50 64 Plastic 0.2 0.09
H008209 3.00 76 6.00 152 3.40 86 2.10 53 Plastic 0.3 0.14
H001379 3.00 76 6.00 152 3.31 84 2.50 64 Plastic 0.2 0.09
H008210 4.00 102 8.70 221 4.06 103 2.90 74 Plastic 0.5 0.14
