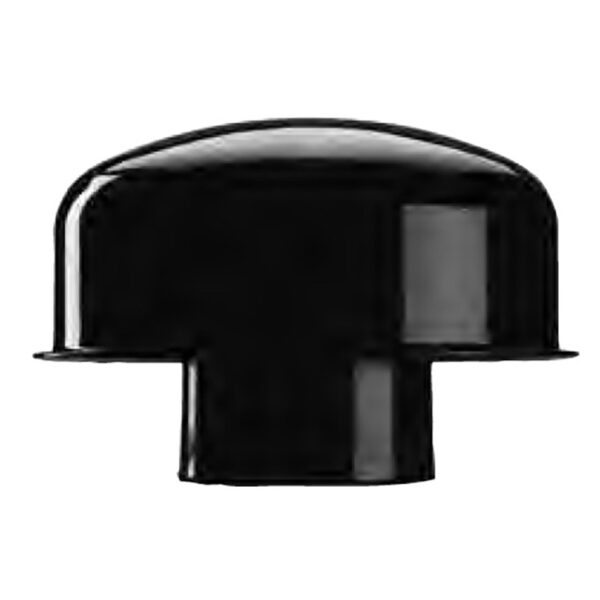

Inlet Hoods – STYLE A

Protects engine air intake from rain, snow, birds and other large contaminants

  • Mounts on stack or directly to air cleaner for
    on-road and off-road equipment
  • Four styles in a wide variety of sizes
  • Installs easily with one clamp. Clamp
    included with hood on styles B, C and D

Description

Inlet Hood — Style A

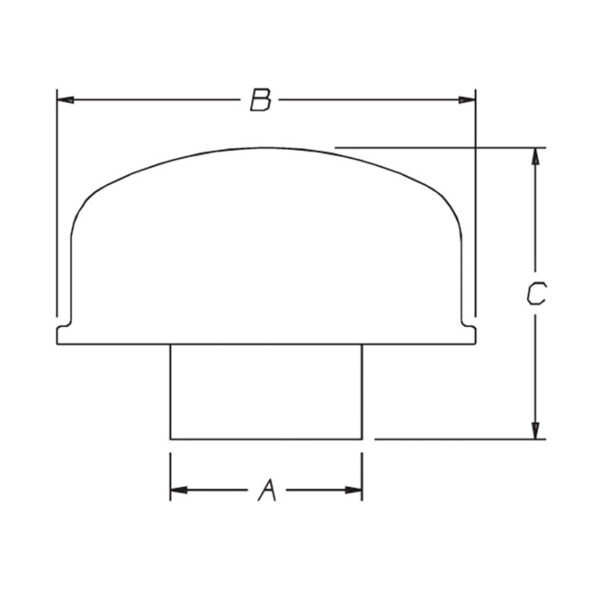

Part Number Fits O.D. (A) Hood Dia.(B) Height (C) Add to Stack Weight
inch mm inch mm inch mm inch mm Mat’l lbs kgs
X002017 1.75 44 4.13 105 3.31 84 2.75 70 Metal 0.50 0.22
X002018 2.00 51 4.13 105 3.25 83 2.75 70 Metal 0.50 0.22
X002019 2.25 57 5.24 133 3.97 101 3.50 89 Metal 0.80 0.36
X001966 2.50 64 5.25 133 3.97 101 3.50 89 Metal 0.80 0.36
X002014 3.00 76 6.13 156 5.06 129 3.75 95 Metal 1.10 0.50
X001988 3.75 95 8.06 205 7.75 197 6.00 152 Metal 2.10 0.95
X002015 4.00 102 8.06 205 7.88 200 6.00 152 Metal 2.00 0.90

1- Clamps must be ordered separately for this style
