EcoVent™ Recirculators

The purpose of fleetguard EcoVent Recirculator is to remove oil mist coming from the engine crankcase breather vent.
They are currently used on nearly every major make of industrial diesel and natural gas engine in the U.S.A and Europe.

Advantages of using EcoVent Recirculator:

  • Cleaner Enviroment

– Removes 99% of oil mist and airborne particles

  • Reduced Oil Consumption

– After the oil droplets are removed from the gases, they pass through an absorbent depth media, which cleans them so they can safely be returned to the oil sump.

  • Easy Installation and Maintenance

– Because the separation of air and oil is accomplished through a static absorbent filter, there are no moving parts or periodic cleaning necessary, only changing of the filter element.


These systems are applicable to marine, industrial diesel, gasoline, or natural gas engines.

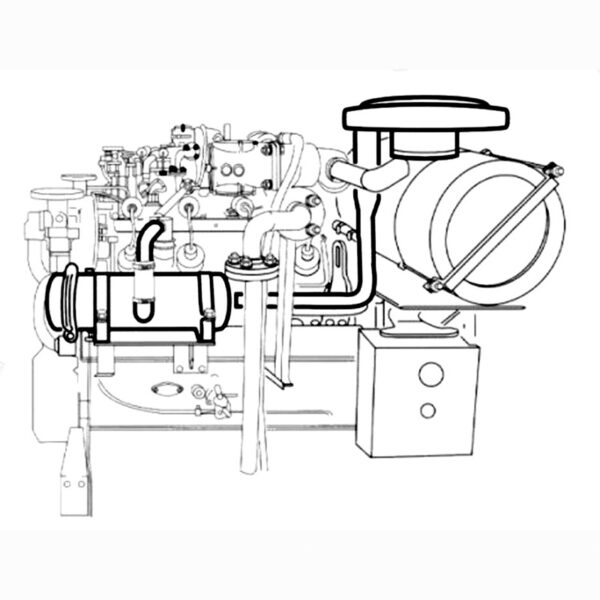

EcoVent prevents oily engine crankcase fumes fouling the engine air intake filters as well as eliminating those fumes, from coating the engine room with noxious mist. The now oily free fumes are vented back into the engine intake, either ahead or after the engine air cleaner.

At either connection point, the EcoVent housing should see 0 to 0.3 inches of water gauge positive pressure on the manometer supplied with each unit. Installation instructions come with every model.

Description

EcoVent™ Recirculator & Elements

PART NUMBER OD DIAMETER LENGTH REPLACEMENT ELEMENT
93196A 38mm 1½” 152mm 6 “ 391mm 15 2/5″ 88468A
93195A 38mm 1½” 152mm 6 “ 597mm 23½” 88467A
93194A 44mm 1¾ “ 220mm 8 7/10″ 775mm 30 1/5″ 88365A
93192A 57mm 2 3/1o” 220mm 8 7/10″ 968mm 38 1/10″ 88465A



Caterpillar™

ENGINE MODEL ECOVENT™ PART NO QTY REQ
342 93194A 1
3114 93196A 1
3116 93195A 1
3208 93195A 1
3304 93195A 1
3306 93195A 1
3406 93194A 1
3408 93194A 1
3412 93192A 1
3508 93192A 1
3512 93192A 1
3516 93192A 2
3606 93192A 2
3608 93192A 2
3612 93192A 4
3616 93192A 4
343 93195A 1
346 93194A 1
348 93194A 1
349 93192A 1
353 93195A 1
379 93194A 1
398 93194A 2
399 93194A 2



Cummins

ENGINE MODEL ECOVENT™ PART NO QTY REQ
G8 93195A 1
G12 93194A 1
G855 93194A 1
G28 93192A 1
GTA-12 93194A 1
GTA855-A 93194A 1
GTA855-B 93194A 1
GTA19 93192A 1
GTA28 93194A 2
4B3.9-G or M 93196A 1
4BT3.9-G or M 93195A 1
6B5.9M6BT5.9-G or M 93195A 1
6BTA5.9M 93195A 1
6C8.3M 93194A 1
6CT8.3-G or M 93195A 1
6CTA8.3-G or M 93195A 1
LTA-10-G 93195A 1
N-885M 93194A 1
NT-885-G or M 93195A 1
NTA-885-G or M 93194A 1
VT903M 93194A 1
VTA903M 93194A 1
KT19-M 93194A 1
KTA19-G or M 93192A 1
KTTA19-G 93192A 1
VTA28-G or M 93192A 1 1
KT38-M 93194A 2
KTA38-G or M 93194A 2
KTA50-G or M 93194A 2
KTTA50-G or M 93192A 2
KTTA 50 -G 93192A 2



Detroit Diesel™

ENGINE MODEL ECOVENT™ PART NO QTY REQ
3-53 93196A 1
4-53 93196A 1
6V-53 93195A 2
4-71 93196A 1
6-71 93195A 1
6V-71 93196A 2
8V-71 93195A 2
12V-71 93194A 2
6V-92 93195A 2
8V-92 93194A 2
12V-92 93194A 2
16V-92 93194A 2
12V-149 93194A 2
16V-149 93192A 2



John Deere

ENGINE MODEL ECOVENT™ PART NO QTY REQ
4039DFM 93196A 1
4045TFM 93196A 1
6068DFM 93195A 1
6068TFM 93195A 1
6076AFM 93194A 1
