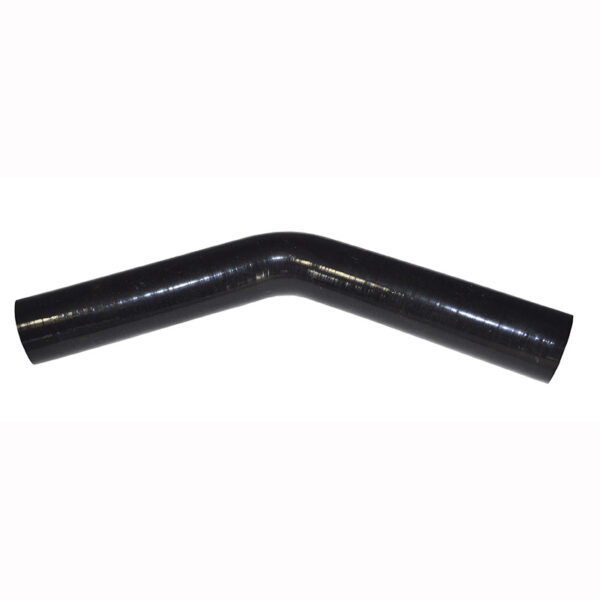

45 Degree Performance Coolant Long Leg Elbows LE Series Shiny Black

This 45 degree LE Series Performance Long Leg Elbow is used in the cooling as well as the intake system and comes in a standard black jacket colour. Reinforcement is 3 Ply of Polyester (for ID between 8mm to 70mm.) and 4 Ply of Polyester (for ID between 76mm to 102mm.) It resists hardening, cracking, cold leaks, aging, and many chemicals. Not suitable for steam. Burst pressure exceeds SAEJ20. Temperature Range is -40 degrees C to 177 degrees C.



Description

45 Degree Performance Coolant Long Leg Elbows Le Series Shiny Black

Part Number ID (mm) ID (inch) Construction Burst Press. (psi) Standard Leg Length
E45-32 32mm 1 1/4 3 Ply SAE J20 R1 200mm
LE45-38 38mm 1 1/2 3 Ply SAE J20 R1 200mm
LE45-45 45mm 1 3/4 3 Ply SAE J20 R1 200mm
LE45-51 51mm 2 3 Ply SAE J20 R1 200mm
LE45-57 57mm 2 1/4 3 Ply SAE J20 R1 200mm
LE45-63 63mm 2 1/2 3 Ply SAE J20 R1 200mm
LE45-70 70mm 2 3/4 3 Ply SAE J20 R1 200mm
LE45-76 76mm 3 3 Ply SAE J20 R1 200mm
LE45-102 102mm 4 3 Ply SAE J20 R1 200mm
