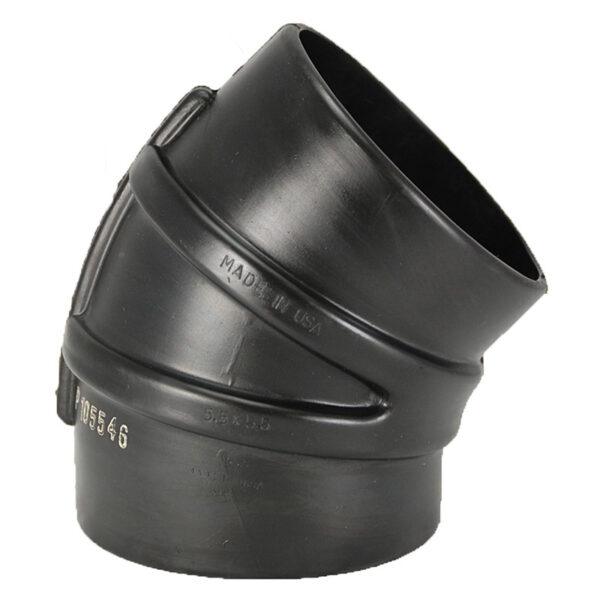

45 Degree Elbows

Description

45° Elbows

Inner Diameter. (A)   Part Radius (R) Part Number
in mm in mm
2.00 51 2.00 51 P105541
2.25 57 2.25 57 P105542
2.50 64 2.50 64 P105543
3.00 46 3.75 95 P105544
3.50 89 3.50 89 P109331
4.00 102 4.25 108 P105546
4.50 114 3.50 89 P114316
5.00 127 4.50 114 P109021
5.50 140 4.75 121 P105546
6.00 152 5.00 127 P105547
7.00 178 5.56 141 P105548
8.00 203 6.50 165 P112606
10.00 254 8.50 216 P114313
