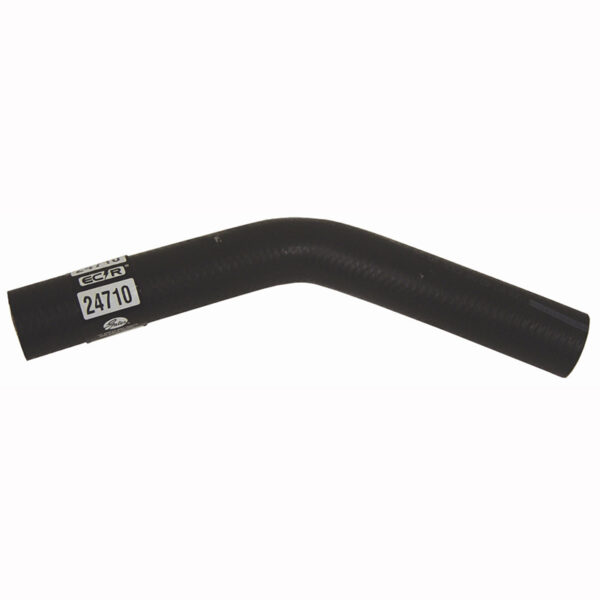

45 Degree and 90 Degree Fuel Fill Hose
This versatile hose is available in 45 and 90 degree sizes. The fuel fill neck is versatile enough that it allows you to fit a hose in difficult applications where a straight hose is not suitable.
- Performs to the same SAE 30R5 specifications as Gates current fuel fill hose.
- Available in 45 and 90 degree
Description
90 Degree Fuel Filler Neck Hose |
|||||
| Part Number | ID | Arm Length (CLR) | Arm Length (CLR) | Working Press. (psi) | |
| Inches | mm | Inches | mm | ||
| 24715 | 1 1/2 | 38 | 8 | 200 | 20 |
| 24716 | 1 3/4 | 44.5 | 8 | 200 | 20 |
| 24717 | 2 | 51 | 8 | 200 | 20 |
| 24718 | 2 1/4 | 57 | 8 | 200 | 20 |
| 24719 | 2 1/2 | 63 | 8 | 200 | 20 |
45 Degree Fuel Filler Neck Hose |
|||||
| Part Number | ID | Arm Length (CLR) | Arm Length (CLR) | Working Press. (psi) | |
| Inches | mm | Inches | mm | ||
| 24710 | 1 1/2 | 38 | 8 | 200 | 20 |
| 24711 | 1 3/4 | 44.5 | 8 | 200 | 20 |
| 24712 | 2 | 51 | 8 | 200 | 20 |
| 24713 | 2 1/4 | 57 | 8 | 200 | 20 |
| 24714 | 2 1/2 | 63 | 8 | 200 | 20 |
